electrical wire factory electrical wire 4 core 95mm power cable

  • 500 – 999
    US $5.00
  • 1000 – 9999
    US $4.80
  • 10000 – 49999
    US $4.50
  • >=50000
    US $4.20
voltage:
300/500V
Oil resistence:
Ordinary
UV resistence:
Ordinary
Usage scenario:
Indoor
Temperature range(fixed):
-20℃ up to +70℃
Temperature range(flexing):
-15℃ up to +70℃
Flammability:
In acc. With IEC 60332-1
No. of cores:
Multi-core
Conductor type:
Stranded
Packing:
Wooden/steel drum/tray
Packaging Details
Steel drum (fumigation)/Wood drum (fumigation)/ Wood spool (fumigation)/ Plastic spool/ Coil/ Rool, according to the model, cable length and container size.
Delivery Time
10-30 working days

electrical wire factory electrical wire 4 core 95mm power cable

Product Description
Electrical properties

Voltage                                         300/500V

Test voltage                                 2000V/5min(AC)



Mechanical properties

Min. bend radius                         fixed Installation               5 × cable outer diameter

                                                       flexing                              7.5 × cable outer diameter

Max. mobile speed                     Overhead speed             3m/s

                                                       Gliding speed                  2m/s

                                                       Acceleration                    20m/s²



Thermal properties

Temperature range                      fixed installation             -20 up to +70

                                                        flexing                              -15℃ up to +70

Flammability                                 In acc. With IEC 60332-1



Chemical properties

Oil resistance                                ordinary

Weather resistance                     UV resistance, suitable for indoor usage

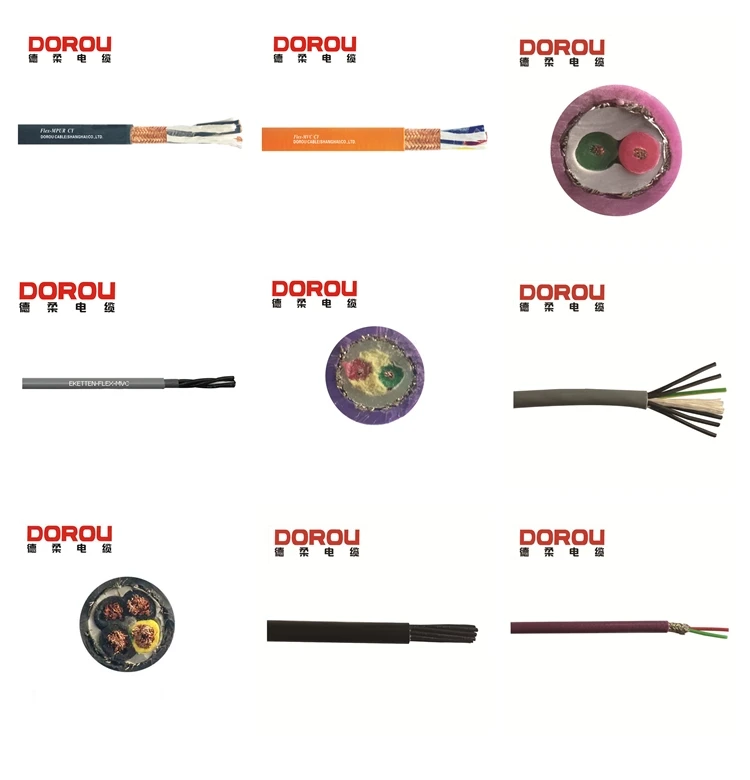

Sectional view & structure

1 Conductor In acc. With VDE0295 Class 6
2 Insulation layer Special low viscosity PVC mixture
3 Filler Special tensile strength core
4 Outer sheath Special low viscosity wear resistant PVC mixture



Company Information

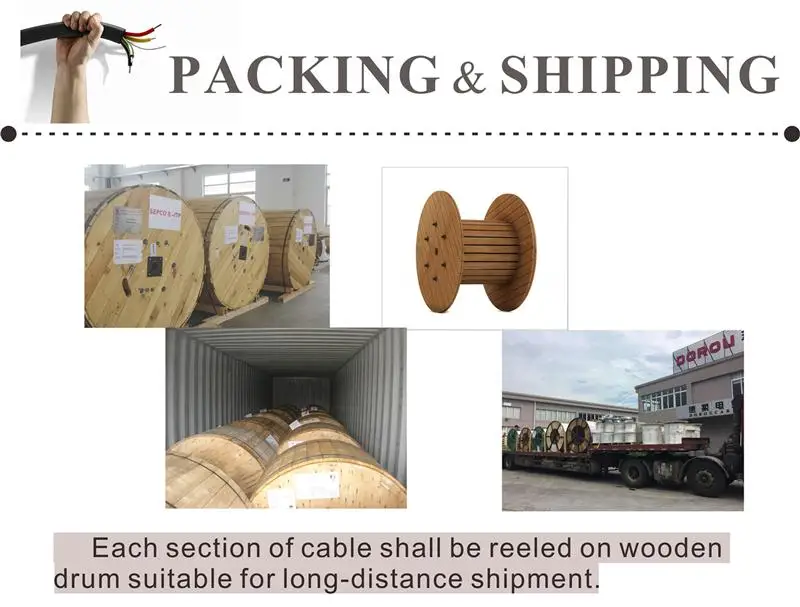

Packaging & Shipping

Packaging

Material:

Steeldrum (fumigation)/Wood drum (fumigation)/ Wood spool (fumigation)/ Plastic spool/ Coil/ Rool, according to the model and quantity ordered.

Cable length in each drum: 500m/1000m or as per actual cable length requirements.

Packaging size:

As per cable length and container size

*In order to quote you the accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!



Shipping

Port: Shanghai, Ningbo, or other ports as per your requirements.

Freight and insurance fee:

FOB/C&F/CIF quotation are all available.

Exhibition



FAQ

Frequently Asked Questions:



Q 1: I didn’t find my needed model in this page.

Answer: Dear Friend, e-catalog will be emailed to you asap you contact us. Also, we supply customization service. So, contact us !

Q 2: What’s your Minimum Order Quantity?

Answer: Normally, 100m for small wires. 500m for power cable

Q 3: When can I get the price and what’s the validity?

Answer: For standard types and small orders, it take less than 24 hours. For big quantity and plenty types, it takes less than48 hours.

Validity is 14 days or as per LME price for tenders and big orders.

Q 4: What’s your payment terms?

Answer: By T/T 30% in advance; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account.

Q 5: What’s your delivery time?

Answer: It depends on whether we just have the stock for your type. Or, it takes about 10 – 30 days for normal orders.

Q 6: How is your quality guarantee?

Answer: It will be stated along with our quotation sheet.

Q 7: What’s your package method?

Answer: Usually, it’s cable reel for wires. Wooden drums for small size cables and steel drums for big size cables.

Anyway, all are exporting package to assure no damage in the transportation process.
